A phone system can work normally until someone clicks FreePBX Apply Config. Then extensions disappear, new calls fail, or a trunk stops responding. The button may expose an older configuration problem rather than create a new one. Successful calls before the reload do not prove that saved settings match the running system.
The useful question is not simply, “Why did reload break calling?” Ask which stage changed: configuration generation, reload processing, endpoint state, or service health. Follow that sequence before restarting services or editing files.
Why a Working PBX Can Fail During Reload

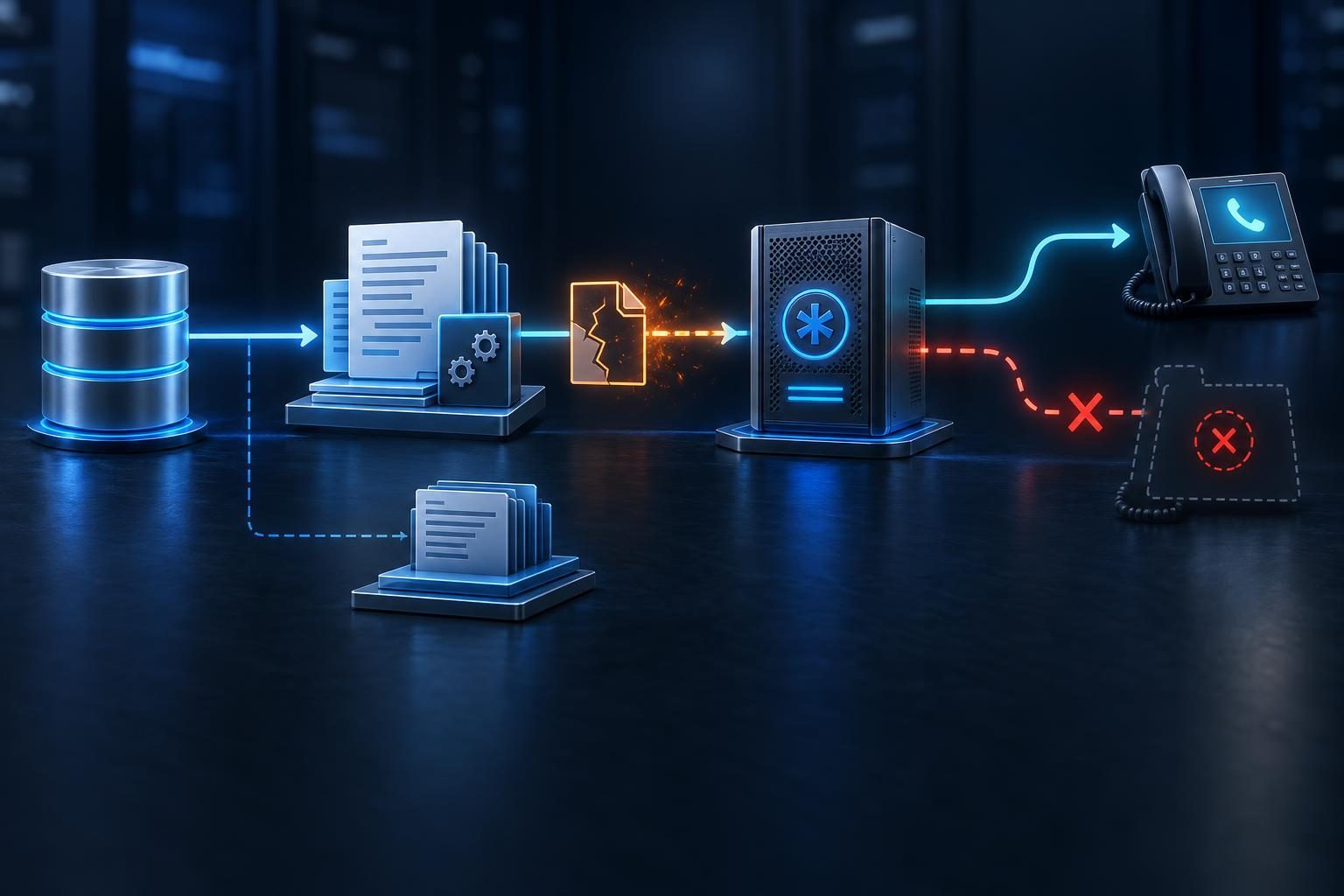

FreePBX manages settings for Asterisk, the software that handles calls. Those settings pass through several layers before they affect a conversation:
- Saved settings: FreePBX stores administrative choices, largely in its database.
- Generated configuration: FreePBX and its modules turn those choices into files and related configuration.
- Running state: Asterisk loads configuration and maintains live call and device information.
These layers can disagree. An administrator might edit a generated file directly, leaving the database unchanged. Calls work until the next generation replaces that manual edit.
Likewise, Asterisk may still hold older settings while pending changes wait for a reload. Applying one small change can activate other saved changes too.
A reload is not a full restart. Different Asterisk components support different reload behavior. Some settings remain unchanged until a restart, while other objects update immediately. A reload also does not guarantee an all-or-nothing change. One component may accept new settings while another reports an error.
Preserve Evidence Before Applying Again
Repeated reloads can obscure the first useful error and introduce more state changes. Stop unrelated edits and record the failure time, including the server’s time zone.
Collect a small evidence package:
- The last successful call and first failed call times.
- The exact settings saved since the previous successful reload.
- Recent module changes, updates, and manual file edits.
- The full Apply Config error, not just its final line.
- Whether existing calls survived and whether new calls failed.
- Which extensions, trunks, and call directions still work.
Confirm an alternate way to reach staff before testing. Property operators should identify entry phones and other critical calling devices. Coordinate any emergency-calling validation with the carrier; never place unarranged emergency test calls.
Secure configuration exports and logs because they can contain credentials, phone numbers, and customer details. Preserve current evidence before restoring anything. Also confirm that you can access the server independently of the affected phone system.
Separate FreePBX Apply Config Stages
Find the earliest meaningful error in the apply output and logs. Later messages may only describe consequences.
- Generation failure: FreePBX cannot build or write the intended configuration.
- Hook failure: A module’s reload-related code fails while performing its part of the operation.
- Asterisk load failure: Asterisk encounters invalid syntax, missing references, or unsupported settings.
- Runtime failure: Configuration loads, but calls fail because live objects or dependencies do not behave as expected.
Module hooks are code that modules run during defined operations. A failing hook may involve application code, database access, permissions, or a missing dependency. It does not automatically mean Asterisk stopped.
Check the installed FreePBX, Asterisk, and module versions. Consult the official FreePBX documentation for version-specific procedures.
The command fwconsole reload performs a real operation; it is not a harmless syntax check. Do not run it repeatedly just to obtain cleaner output. If another attempt becomes necessary, capture it during an approved test window.
Inspect Configuration Generation and Syntax Errors
Use the error’s file name, line number, or object name to narrow the investigation. Check whether the referenced file comes from FreePBX generation or a supported custom include.
Compare the affected settings with a known-good copy, if available. File timestamps help establish sequence, but they do not prove correctness. A comparison of file contents can reveal a missing section, changed endpoint name, or altered include.
Common causes include:
- Manual changes inside files that FreePBX overwrites.
- Invalid syntax in a custom configuration file.
- References to objects that no longer exist.
- Module output that does not match the installed Asterisk capabilities.
- Storage or permission problems that prevent complete file generation.
Correct settings at their managed source whenever possible. Editing generated output alone may restore behavior briefly, then fail at the next reload.
Do not assume one command validates every Asterisk subsystem. Review the relevant component’s errors and loaded objects. Avoid launching another Asterisk instance against production configuration as a validation shortcut.
If logs show a read-only filesystem, investigate that condition before changing ownership or permissions. The filesystem mount troubleshooting guide covers that separate recovery path.
Compare Endpoint State Before and After Reload
An endpoint is Asterisk’s configuration for a phone or another SIP peer. SIP is the signaling protocol that sets up calls. A configured endpoint, a registered contact, and a reachable device are different things.
For systems using PJSIP, Asterisk’s SIP stack, these commands provide observational snapshots:
asterisk -rx 'core show uptime'
asterisk -rx 'core show channels count'
asterisk -rx 'pjsip show endpoints'
asterisk -rx 'pjsip show contacts'
asterisk -rx 'pjsip show registrations'Run them only with authorized access and appropriate privileges. Availability and output depend on installed modules. Protect the output when sharing it.
The registrations command shows outbound registration objects, often used by trunks. It does not list every phone registration. Contacts show addresses Asterisk knows for relevant SIP destinations.
If an endpoint disappears, inspect configuration loading first. When it remains but loses its contact, inspect registration exchanges and authentication. If both remain, compare call routing and the actual failure response.
Do not assume every transport change takes effect during reload. Transport behavior depends on settings and version. Check the Asterisk documentation before scheduling a restart.
Check Service Health Beyond the Web Interface
A working FreePBX page does not prove the call engine works. Conversely, a failed web request does not prove Asterisk stopped.
Check Asterisk responsiveness, process uptime, active calls, and listening sockets. Then inspect database availability, free disk space, free inodes, and relevant permissions. Inodes are filesystem records; exhausting them can prevent new files even when storage remains.
On systems using systemd, inspect the relevant service status and journal. Confirm service names locally rather than copying names from another installation.
Correlate FreePBX errors with Asterisk logs around the same timestamp. Look for process exits, memory pressure, failed file writes, and database errors. Distinguish an inaccessible control socket from a stopped process.
A running service may still have rejected part of its configuration. Treat process health and configuration health as separate checks.
Roll Back the Source, Then Verify Calling
Choose the smallest reversible correction supported by the evidence. If one saved setting caused the failure, revert that setting through its supported interface.
For a broken custom include, preserve the current file before restoring the known-good content. If a module update caused the issue, check supported recovery options and database compatibility. Do not blindly downgrade module files.
A backup taken after the failure preserves evidence, but it is not a known-good rollback point. Confirm backup contents and recovery access before using a broader restore.
Once you correct the source, perform one controlled apply and capture its output. Then test:
- Internal calls between representative extensions.
- Inbound and outbound calls through affected trunks.
- Two-way audio, hangup behavior, and required transfers.
- Voicemail and critical destinations affected by the change.
If calls now reach voicemail unexpectedly, follow the narrower routing and availability checks rather than treating every symptom as another reload failure.
Make the Next Apply Predictable
After resolving a FreePBX Apply Config failure, document the mismatch between saved settings and running behavior. Record the corrective change, test results, and any settings that still require a planned restart.
Keep custom work in supported locations. Review pending changes before applying, and separate module maintenance from routine routing edits. These habits make the next failure easier to isolate.
