SIP ALG problems can make business calls fail even when the internet connection seems healthy. A router’s call helper may change addresses inside signaling messages, then send replies or audio toward the wrong destination. However, similar symptoms also come from ordinary firewall rules, phone settings, and provider faults.
The useful question is not simply whether ALG is on. Ask whether a specific helper changes a specific call incorrectly. This guide focuses on proving that behavior through paired packet captures and controlled tests, rather than guessing from missing audio.
What a SIP ALG Changes Inside a Call
Session Initiation Protocol (SIP) carries the messages that establish, change, and end calls. An application-layer gateway (ALG) inspects those messages as they pass through a router or firewall. Vendors may call this feature a SIP helper, SIP inspection, or a voice gateway service.
Network address translation (NAT) maps private addresses and ports to addresses and ports on another network. Ordinary NAT changes packet addressing. A SIP ALG can also rewrite addresses inside the packet’s contents.
For example, a phone may advertise its private address in a Contact header. That header supplies a target for later SIP requests. A helper may replace the private address with a public address and translated port.
Some implementations also inspect Via headers, which help route responses, or alter other routing details. The IETF SIP specification explains these header roles. Not every changed header signals a fault; SIP servers can legitimately add or modify routing information.
How NAT Helpers Can Break Media Instructions
SIP messages often contain Session Description Protocol (SDP), which describes proposed media addresses, ports, and formats. Real-time Transport Protocol (RTP) commonly carries the actual voice packets.
A helper may rewrite SDP connection addresses and media ports. It may also create temporary firewall permissions, often called pinholes, for the expected media stream. Those actions aim to help devices behind NAT receive calls and audio.
Problems arise when the helper’s assumptions conflict with the phone system. A private branch exchange (PBX), or business phone system, may already advertise the correct public address. A provider’s session border controller (SBC) may also handle NAT traversal and media routing.
Additional rewriting can replace a valid destination, select the wrong public interface, or mishandle a call update. Two routers with active helpers can compound the issue.
Still, some deployments rely on helper behavior. Disabling it can expose an existing NAT configuration gap or remove needed dynamic permissions. That is why disabling ALG is a diagnostic change, not a universal repair.
Which Symptoms Justify a SIP ALG Investigation?
SIP ALG problems can affect registration, call setup, audio, and transfers. Registration lets a phone or PBX tell a service where to reach it. A successful registration does not prove that later call messages will follow the correct path.
- Calls work until hold, transfer, or another mid-call update changes media details.
- One call direction fails while the other works.
- A new firewall policy or firmware change precedes failures.
- Several phones behind one router behave differently from phones elsewhere.
- Packet captures show an unexpected address change across one gateway.
These clues justify investigation, but none proves ALG interference alone. Calls that drop at a repeatable interval may instead involve missing acknowledgments or expired state. Use a separate call-drop timing investigation when timing provides the strongest clue.
Likewise, persistent silence calls for tracing the media path. Keep this investigation narrower: determine whether the gateway altered signaling incorrectly, and whether that alteration explains the failure.
Map the Call Path Before Changing Settings
Draw the path from the affected phone or PBX to the provider. Include the business firewall, any upstream router, and the provider-managed edge device. Mark each NAT boundary and record who controls it.
Then collect the details that define your test:
- Phone or PBX address, affected extension, and provider connection.
- SIP transport: UDP, TCP, or TLS.
- Actual signaling ports and configured media port range.
- Router model, firmware, helper settings, and relevant policy scope.
- Current public address and any backup internet path.
- A reproducible call scenario, including direction and the failing action.
Transport Layer Security (TLS) encrypts signaling between its endpoints. A gateway that merely passes encrypted SIP generally cannot rewrite its contents. Check whether another device terminates TLS before blaming header rewriting.
Do not assume all SIP uses port 5060 or that a helper examines every port. Vendor implementations differ. Confirm the actual traffic path and inspection scope in documentation for the installed firmware.
Capture Evidence on Both Sides of the Helper

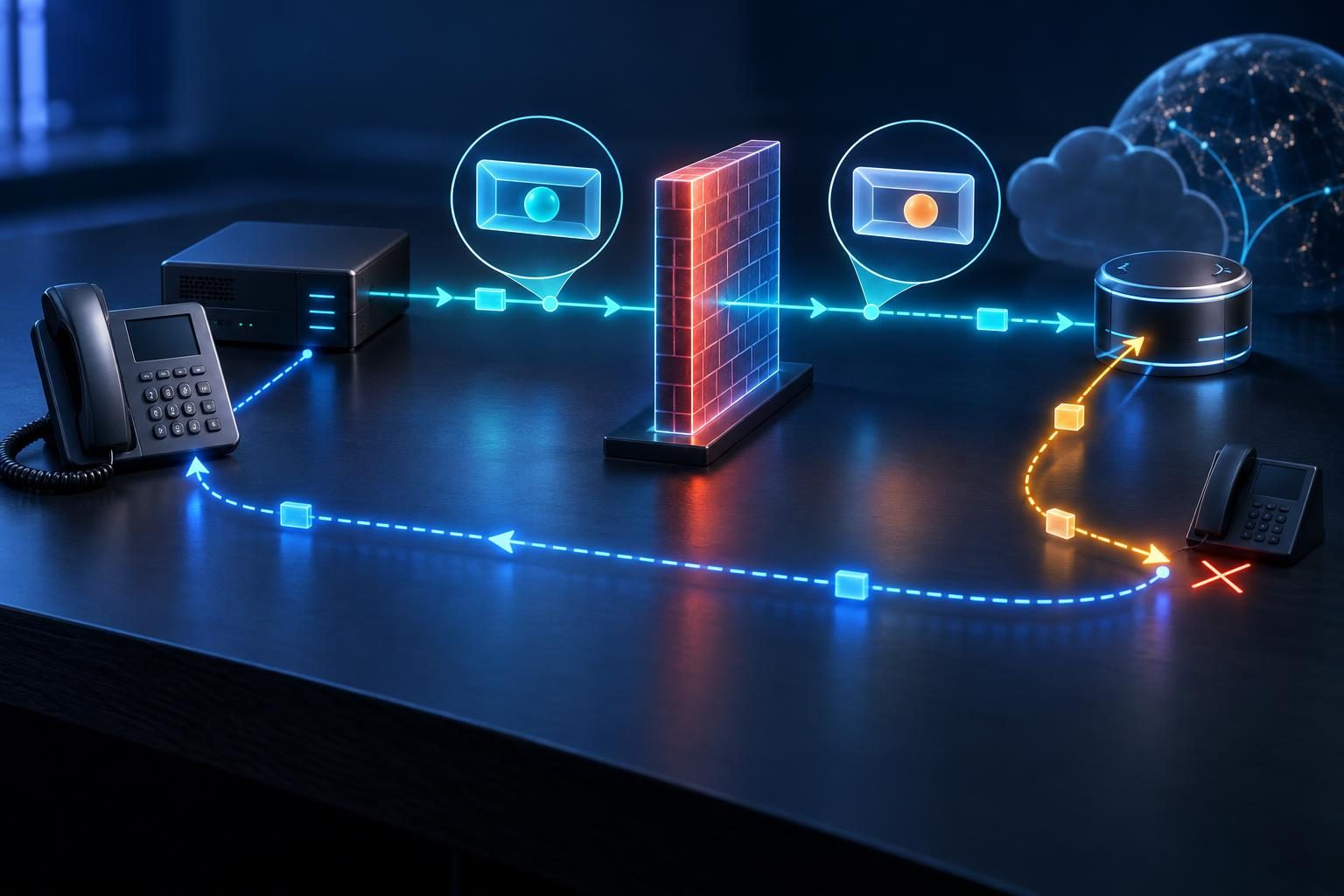

The strongest evidence compares the same SIP message before and after the suspected gateway. Arrange brief captures on its inside and outside interfaces, where your access and capture tools permit.
Confirm where those capture points sit relative to NAT and inspection. Some appliance capture tools show packets at unexpected processing stages. An administrator may need a separate capture point to confirm what actually left the device.
Limit collection to the relevant hosts and test interval. Packet captures can expose phone numbers, authentication material, and unencrypted voice. Obtain approval, restrict access, and define a deletion date.
Record the test time and SIP Call-ID, an identifier that helps group call messages. Match the same request or response across the boundary. Compare its network addresses separately from its SIP headers and SDP contents.
Look for a Change That Explains the Failure
Check Contact and Via values, then inspect SDP connection addresses and media ports. If SDP includes media-level connection details, review those too. A single session-level address may not describe every stream.
For an illustrative failure, imagine the PBX already advertises a valid public media address. The gateway changes it to an address on the wrong internet interface. The remote side then sends voice packets there. Captures showing that sequence support the helper hypothesis.
A private address in a capture is not automatically wrong. Private addresses may be valid across a private carrier connection or VPN. Judge each value against the actual receiving system and route.
Avoid comparing messages across a PBX or SBC as though it were a transparent router. Those systems can legitimately create new call legs and rewrite signaling. Isolate the suspected gateway whenever possible.
Run a Controlled SIP ALG Test With Rollback
Schedule a maintenance window with the phone-system owner. Even a narrow helper change can interrupt active calls or require fresh connections. Confirm alternate communication and a recovery path before touching a remotely managed firewall.
- Save the baseline. Export the configuration securely and record the original helper setting.
- Reproduce the fault. Run a known failing call and collect its logs and packet evidence.
- Change one variable. Disable only the relevant helper or inspection feature, using the documented procedure.
- Refresh only what is necessary. Follow vendor guidance for existing sessions and affected phone registrations.
- Repeat the same tests. Keep the endpoint, destination, transport, and call actions unchanged.
- Restore the setting if service worsens. Confirm recovery and record any remaining symptoms.
Do not clear all firewall sessions casually. That action can disconnect unrelated services and your remote support session. Some products require a restart; others apply changes only to new flows. Verify this before the window.
Never combine this test with broad port forwarding, a firewall shutdown, or an internet-exposed PBX. Those changes increase risk and destroy the comparison.
Interpret Results Beyond One Successful Call
Repeat inbound and outbound calls, then test hold, resume, transfers, and keypad input where relevant. Include an idle interval that previously triggered trouble. Avoid emergency numbers for routine testing.
Improvement after disabling the helper supports your hypothesis, but does not prove it alone. Refreshing sessions may temporarily fix stale state. Stronger evidence shows both the harmful rewrite disappearing and the same failed action succeeding repeatedly.
If approved and operationally acceptable, restoring the original setting can test whether the fault returns. Do not deliberately recreate an outage during business hours just to strengthen the diagnosis.
- No change: Check for another helper, an unmatched inspection policy, or a different root cause.
- Worse results: Restore the baseline and review NAT settings and missing media permissions.
- Partial improvement: Separate the corrected signaling issue from remaining media or routing faults.
Document the final setting, test results, and any limitations. Recheck critical call functions after later router, provider, or PBX changes.
Know When to Escalate the Evidence
Send the responsible administrator a concise evidence package: topology, firmware, original settings, test timestamps, Call-IDs, and before-and-after results. Explain which field changed and why its new value failed. Share captures through an approved secure channel, not a public support forum.
Upstream equipment may sit outside your control. Ask the provider to confirm its NAT and inspection behavior rather than assuming the local switch controls everything.
Professional remote assistance may help when SIP ALG problems involve several NAT boundaries or risky production changes. Tech Rescue Ops LLC offers remote VoIP and PBX support for evidence collection and coordinated testing. The goal is a verified call path, not simply an unchecked ALG box.
