Upstream NAT Troubleshooting for Failed Port Forwarding

When a forwarding rule looks correct but outside connections never arrive, upstream NAT troubleshooting can reveal a boundary you do not control. Your firewall might sit behind another router or your internet provider’s shared address system. In that case, editing the local rule cannot fix the missing upstream path.

This checklist focuses on identifying who controls each inbound boundary. It then follows one test connection through the listener, firewall, translation, and reply route. The aim is to locate the first missing packet before changing settings.

Map the Upstream NAT Path Before Editing Rules

NAT means network address translation. A router uses it to rewrite addresses, and sometimes ports, as traffic crosses a network boundary. A port forward maps incoming traffic to a particular internal service.

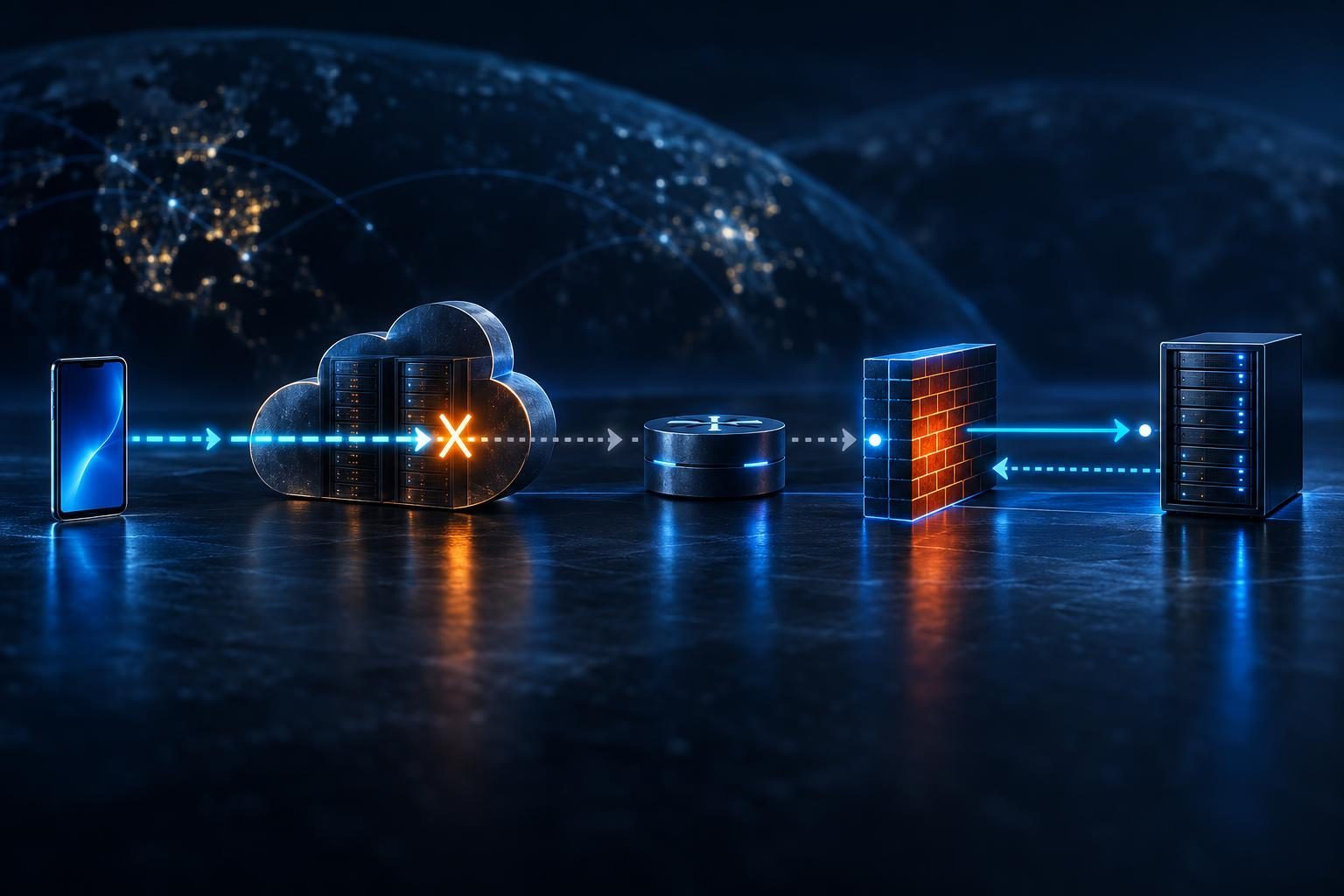

Write down the expected path:

1. External test device and its source address.
2. Public destination address and external port.
3. Provider equipment or an upstream router.
4. Your firewall’s internet-facing interface.
5. Internal server address and service port.
6. The server’s gateway and expected reply path.

Record whether the service uses TCP or UDP. TCP establishes a connection before exchanging application data. UDP sends individual messages without that connection handshake. A TCP-only port checker cannot validate a UDP service.

Use a genuinely external test device, such as a phone with Wi-Fi disabled. An internal test against your public address may depend on NAT reflection. That feature lets internal clients reach an internal service through its public address.

For broader application checks, see our guide to remote access that works only on-site. Here, concentrate on locating the address boundaries first.

Confirm Who Controls the Public IPv4 Address

Open the firewall’s status page and record its WAN address. WAN means the interface facing the internet or an upstream network. Compare that address with the public IPv4 address observed from the same connection.

Ensure both observations use IPv4. Also confirm that a VPN, proxy, or second internet connection did not carry the public-address check.

• Matching public addresses: Your firewall may directly receive internet traffic. Matching alone does not prove inbound access.
• Private WAN address: Another device performs translation upstream.
• Shared WAN address: Provider-controlled translation may prevent ordinary inbound forwarding.
• Different public addresses: Investigate provider translation, multiple WAN links, or a changed address.

Private IPv4 ranges include 10.0.0.0/8, 172.16.0.0/12, and 192.168.0.0/16. Provider shared address space spans 100.64.0.0 through 100.127.255.255.

A public address appearing in an address registry does not establish your control over its inbound mapping. Confirm the address assignment with your provider and the equipment configuration.

This comparison is the foundation of upstream NAT troubleshooting. It separates a local configuration problem from a connection that requires provider involvement.

Distinguish Provider NAT From a Managed Upstream Router

Carrier-grade NAT, or CGNAT, lets a provider share public IPv4 addresses among customers. Your local port forward cannot create a mapping on the provider’s equipment.

Ask the provider whether your service includes a directly reachable public IPv4 address. Also ask whether it supports inbound mappings or offers a public-address option. Do not assume a static address automatically removes inbound restrictions.

If you control the upstream router, document both translation steps. The first router must forward traffic to your firewall’s WAN address. Your firewall must then forward that traffic to the internal server.

Double NAT can work, but both mappings must agree on the protocol and intended ports. Give the downstream firewall a stable upstream address so the first mapping does not drift.

Bridge or passthrough mode may remove one boundary. However, changing that mode can disrupt routing, management access, or provider services. Verify the equipment’s behavior and prepare a rollback plan first.

When the provider cannot supply inbound reachability, consider a supported VPN or outbound-initiated tunnel. Review authentication, access limits, and operating responsibilities before choosing an alternative.

Verify the Listener Before Testing Internet Delivery

A listener is a running service waiting for traffic on an address and port. Forwarding packets to a stopped service accomplishes nothing.

On a Linux server, these commands inspect TCP listeners and bound UDP sockets without changing configuration:

ss -lnt
ss -lnu

Confirm command availability and permission requirements on your system. The ss manual explains the options and output.

Check the service’s bind address. A service bound only to 127.0.0.1 accepts local IPv4 connections, not connections to the server’s LAN address. An IPv6 listener does not always accept IPv4 traffic; behavior depends on application and system settings.

Next, test the intended internal address and port from an authorized device on the local network. Use the actual application protocol where possible. A successful TCP connection proves less than a successful authenticated application request.

If the internal test fails, inspect the application and host firewall first. If it succeeds, preserve that result as your baseline. Do not expose an unprotected administrative service merely to simplify testing.

Check Firewall Policy and Port Translation Together

Compare the forwarding rule against your path notes. Verify the incoming interface, public destination, protocol, external port, internal address, and internal port.

A forward can intentionally map different ports. For example, an external test port may map to the application’s usual internal port. Capture filters must account for that change.

Check whether your firewall requires a separate permission rule. Some products create one automatically; others require explicit configuration. Rule matching before or after translation also varies by platform.

Look for an earlier rule that shadows the intended rule. Review source restrictions, schedules, address objects, and router services using the same external port. Confirm the server still holds the address named in the forward.

For pfSense systems, consult the official Netgate documentation for platform-specific NAT and firewall behavior.

A log entry marked allowed does not prove delivery to the application. Our guide to connections that time out despite an allow rule explains that distinction.

Trace One External Attempt Across Each Boundary

Capture only authorized traffic and limit the duration. Packet captures may contain sensitive information. Use filters for the test source, destination, protocol, and relevant ports.

Record the test time, including time zone. Then compare evidence from the WAN interface, internal interface, and server.

• No request at the WAN: Check the tested address, upstream mapping, provider filtering, and test network.
• Request at WAN but not LAN: Investigate local policy, translation, and destination selection.
• Request at server but no reply: Check the listener, host firewall, and application.
• Reply from server but not WAN: Inspect routing, firewall state, and reverse translation.
• Reply leaves WAN but client receives nothing: Examine the upstream path and client-side filtering.

For TCP, the initial SYN packet requests a connection. A SYN-ACK indicates that something accepted it. A reset usually signals an active rejection, while silence remains ambiguous.

UDP services may ignore unexpected probes. Use a valid application request instead of treating silence as proof of filtering.

Verify the Reply Route and Provider Restrictions

The server must send its reply through the device holding the connection’s NAT state. A second gateway, VPN route, or multiple network interfaces can send replies elsewhere.

Inspect the server’s route toward the external test address. On networks with multiple internet connections, check policy routing and failover behavior too. Successful outbound browsing does not validate this particular reply path.

Do not add source NAT simply to hide a route problem. It can change the client address visible to the application and affect logging or access controls. Review the design before using it.

For deeper state checks, follow our guide to firewall return traffic and asymmetric routing.

If no request reaches your WAN, ask the provider about inbound filtering, address assignment, and service restrictions. Supply timestamps and the destination protocol and port. Missing packets suggest an upstream issue, but they do not prove intentional ISP blocking.

Escalate With Evidence, Not More Open Ports

Collect a small evidence package: the path diagram, WAN address comparison, listener result, rule details, test timestamp, and capture findings. Identify the last boundary that saw the request and the first boundary that did not.

After any approved change, repeat the same test. Remove temporary rules and captures, then verify that access remains limited to the intended service.

Effective upstream NAT troubleshooting ends with a verified path, not a larger set of exposed ports. Tech Rescue Ops LLC can provide remote assistance when provider handoffs, multiple routers, or unclear reply routes require coordinated testing.
