VPN home subnet conflicts can leave a remote worker connected but unable to reach internal business resources. The strongest clue is location: the same laptop works through a hotspot but fails on home Wi-Fi. However, that comparison does not prove an address conflict. DNS, access policy, and packet size can also change with the connection.
This guide focuses on that location-dependent failure. It explains how to compare two connections and identify where traffic leaves the expected path. Use it before adding routes, changing a home router, or relaxing business firewall rules.
Establish a Controlled Location Comparison
A VPN connection indicator confirms only part of the process. Depending on the product, it may show authentication or an active tunnel interface. Neither proves that a particular server can receive and answer traffic.
Choose one approved internal service with a known address and port. Confirm that the service works from the office or another authorized connection.
- Record the laptop, VPN profile, account, and client version.
- Connect through home Wi-Fi and reproduce the failure once.
- Save the time, assigned VPN address, routes, and DNS settings.
- Disconnect the VPN before switching to an approved hotspot.
- Reconnect with the same account and repeat the same service test.
Keep only the intended network interface active during each test, when practical. Otherwise, Ethernet or a second wireless connection may affect route selection.
A hotspot comparison changes several conditions at once. Treat success there as a useful clue, not a final diagnosis. Follow company rules for mobile connections and sensitive traffic.
Recognize VPN Home Subnet Conflicts
A subnet is a range of addresses that devices treat as part of one network. Home and business networks sometimes use the same private range.
For example, a home router and an office network might both use 192.168.1.0/24. The /24 describes the network boundary. An office server at 192.168.1.50 then appears to sit on the laptop’s home network.

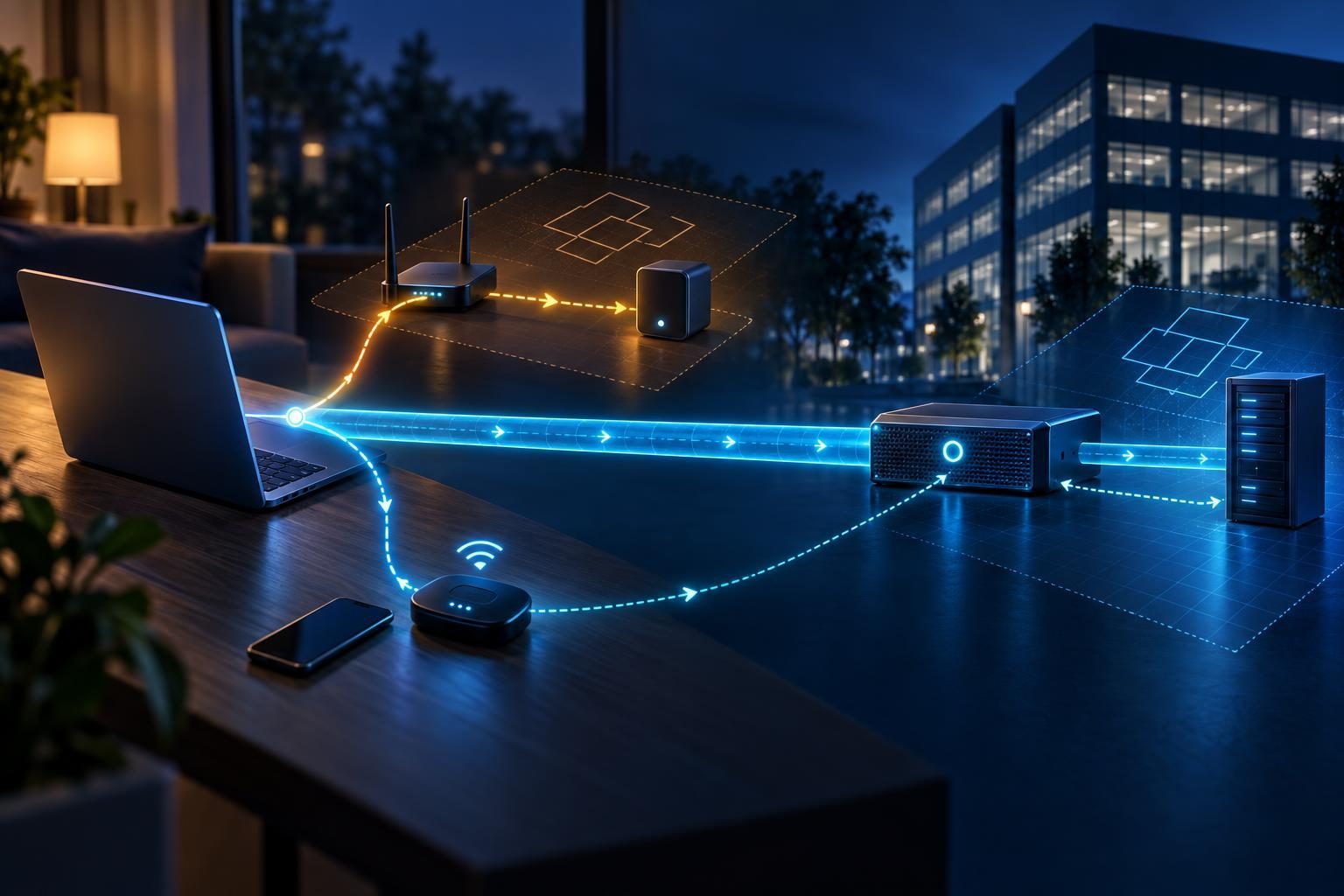

The laptop may try to reach that address through home Wi-Fi instead of the VPN. A local device could even answer, creating misleading results.
Compare these details on both connections:
- Local address, subnet mask, and default gateway.
- Internal server address and network range.
- VPN client address and installed routes.
- Selected interface for traffic to the server.
Matching private address prefixes alone do not prove overlap. Compare the actual subnet boundaries and selected route. Also check whether the VPN address pool overlaps a local network.
Inspect Route Selection and Split Tunneling
A route tells the operating system where to send traffic. Split tunneling sends selected destinations through the VPN while other traffic uses the local connection.
On Windows, route print displays the route tables. PowerShell’s Find-NetRoute -RemoteIPAddress 192.168.1.50 can help identify the selected path. On Linux, use ip route get 192.168.1.50. Replace the example address with your approved test destination.
These inspection commands do not intentionally change routes. Still, follow local support procedures and protect their output, which can reveal internal addressing.
Compare results from home Wi-Fi and the hotspot. Look for a missing VPN route or a destination that selects the physical interface.
Within ordinary route selection, a more specific destination route generally wins over a broader route. Metrics help choose among otherwise comparable routes. Policy routing and VPN client controls can add further rules.
A full-tunnel setting does not necessarily override a more specific local route. Conversely, some clients deliberately block local network access. Confirm actual behavior rather than trusting a profile label.
For OpenVPN deployments, consult the official routing and tunnel reference. Apply only options that match the deployed client, server, and configuration.
Separate DNS Failure From the Wrong Network Path
DNS translates a service name into an address. A route test cannot explain the failure if the application resolves a different destination at home.
Record the full internal hostname, returned addresses, and resolver used during each connection. Compare both IPv4 and IPv6 answers when available.
Then test the approved service port against the expected address. On Windows, Test-NetConnection 192.168.1.50 -Port 443 checks a TCP connection to that example destination. Use the actual authorized port; avoid broad scans.
A successful TCP connection proves less than a successful application session. Opening an HTTPS service by address can also cause certificate or site-selection errors. Do not bypass certificate warnings to force a result.
If the address test succeeds but the hostname fails, follow the internal VPN DNS diagnostic sequence. Investigate resolver assignment, name suffixes, and application-specific DNS behavior rather than changing routes blindly.
Verify Firewall Policy and User Access Control
Once traffic selects the tunnel, check whether the gateway accepts it. Match logs to the test time, destination, port, protocol, and assigned VPN address.
Compare effective policies, not just usernames. A reconnect may assign a different address pool, gateway, or access profile. Device health checks and group membership can also affect permissions.
- Confirm that the VPN policy permits the required destination and service.
- Check the server’s own firewall for the actual source address.
- Verify that the service listens on the intended internal interface.
- Separate network permission from application login and role permission.
An explicit application denial usually means some network communication succeeded. A timeout alone does not prove that a firewall blocked traffic.
For file shares, use the shared-drive access checklist after proving the network path. Share permissions and stored credentials need separate checks.
Do not disable firewalls or grant broad access as a shortcut. Any temporary exception needs approval, a narrow scope, and a removal plan.
Trace the Return Path Before Adding NAT
A server must send replies back to the VPN client. The request can arrive correctly while the response takes another gateway.
Ask the network administrator to trace one approved test at the VPN gateway and destination network. Use short, filtered packet captures when logs cannot answer the question.
- No request enters the tunnel: revisit client routes and local controls.
- The gateway receives the request but does not forward it: inspect policy and routing.
- If the server receives it but sends no reply, inspect the service and host firewall.
- The server replies elsewhere: inspect its gateway and the route to the VPN pool.
NAT, or network address translation, changes packet addresses. Some VPN designs intentionally translate client traffic; others preserve each client’s address. Determine what the server actually sees.
Do not add NAT simply because replies fail. It may hide a missing route and change audit visibility. A home-only failure makes the local path especially important, but reconnecting may also change the VPN pool.
Check MTU When Small Tests Work but Sessions Stall
MTU is the largest IP packet an interface can carry without fragmentation. VPN encapsulation adds overhead, reducing the space available for the original packet.
Suspect a packet-size problem when connections start but larger transfers stall. Different home and mobile paths can support different packet sizes or handle discovery messages differently.
A successful ping does not rule this out. Small probes may work while larger packets fail. Blocked ping replies also do not prove the application path is broken.
Have an administrator compare captures and approved packet-size probes. Look for retransmissions and relevant packet-too-big messages. Avoid choosing an arbitrary MTU from an unrelated setup.
TCP MSS adjustment can limit TCP segment size, but it does not repair every protocol. UDP traffic needs separate consideration. Change packet-size settings only after collecting evidence and preparing rollback.
Correct Home Subnet Conflicts and Retest Both Locations
Confirmed VPN home subnet conflicts need an addressing or routing decision, not repeated reconnects. Where practical, renumber the home network to an approved, non-overlapping private range.
Changing the home range can disrupt printers, reservations, and other devices. Back up the router configuration and arrange local recovery access first. A remote session may drop immediately.
For managed environments, administrators may consider alternate addressing, deliberate translation, or narrowly scoped routes. Each option carries tradeoffs. A host route can restore one server while leaving other destinations broken.
After the change, repeat the same hostname, port, and application tests at both locations. Confirm that local devices still work and unauthorized destinations remain blocked. Remove temporary routes and diagnostic exceptions.
If the evidence crosses client routing, gateway policy, and server return paths, professional remote assistance may help. Tech Rescue Ops LLC can review a controlled test record and plan targeted changes. Keep timestamps, route snapshots, and sanitized logs ready, but never include passwords or private keys.
